Designed for endoscopic resection of gastrointestinal polyp tissue without the use of diathermic energy, supporting a simplified and safer approach to polypectomy in small and diminutive lesions
Controlled loop design supports consistent snaring performance and reliable tissue capture.

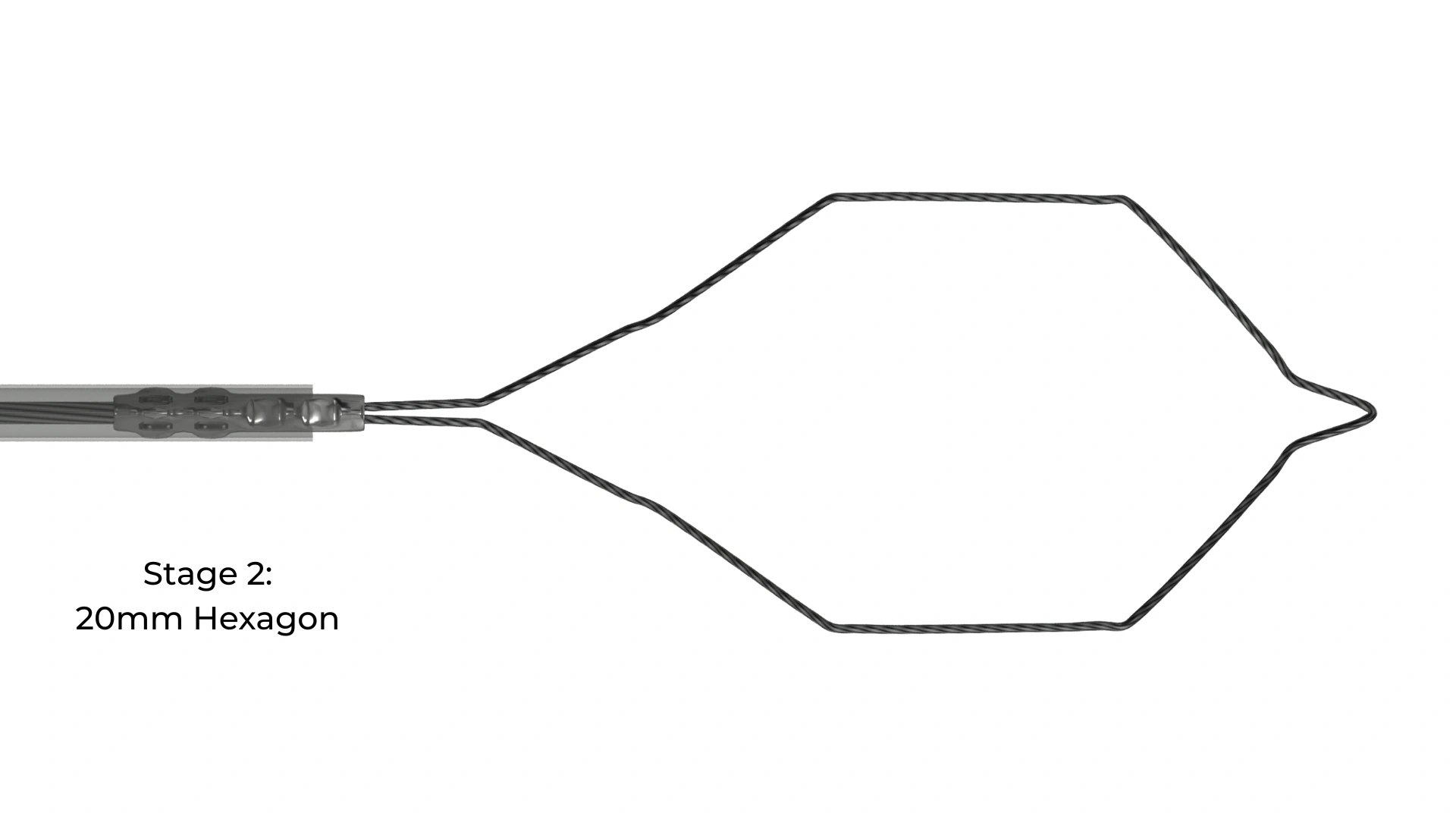

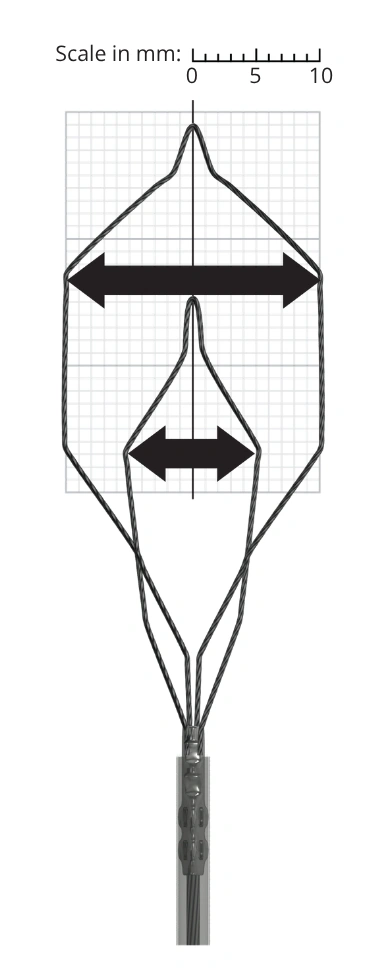

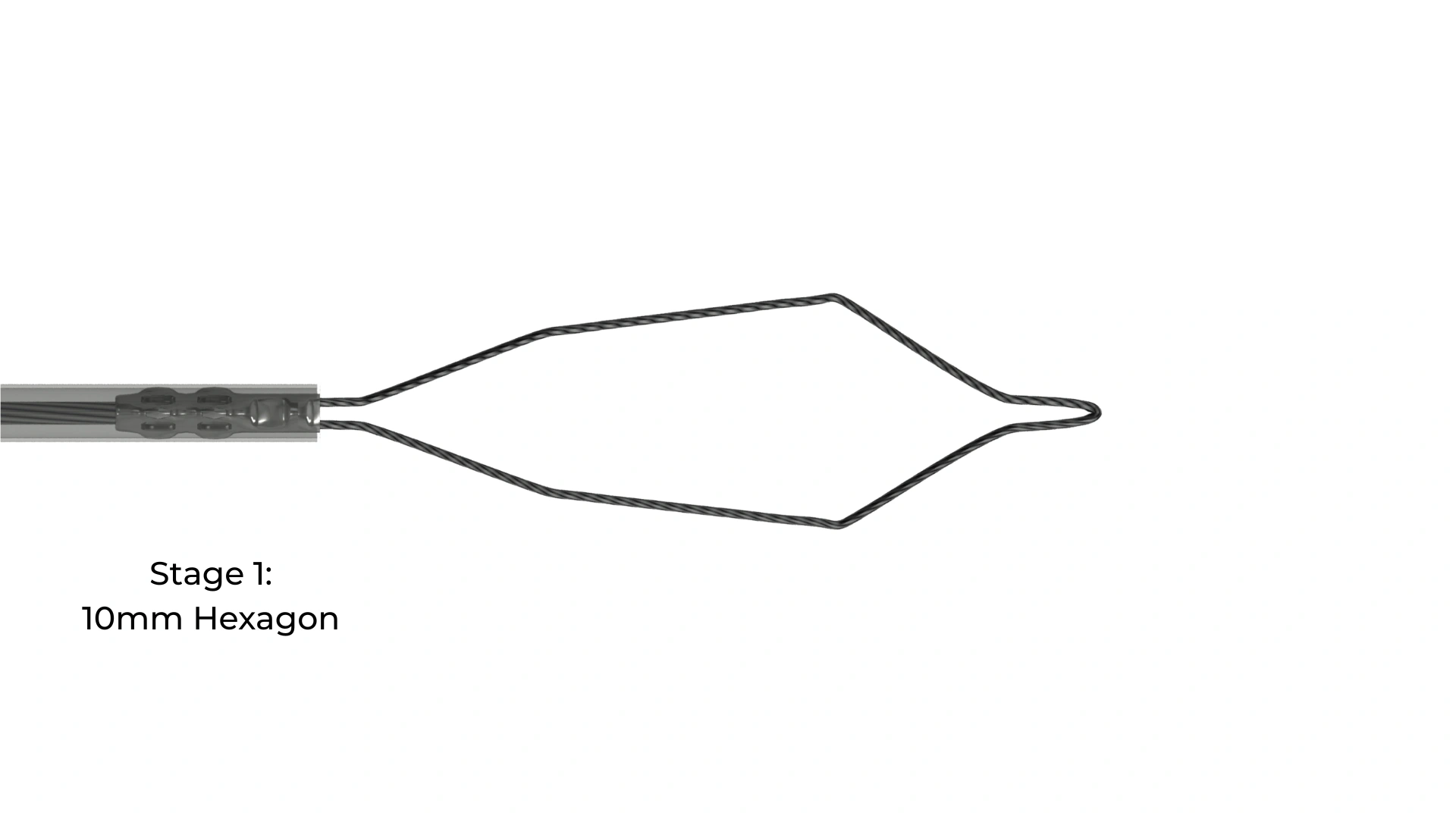

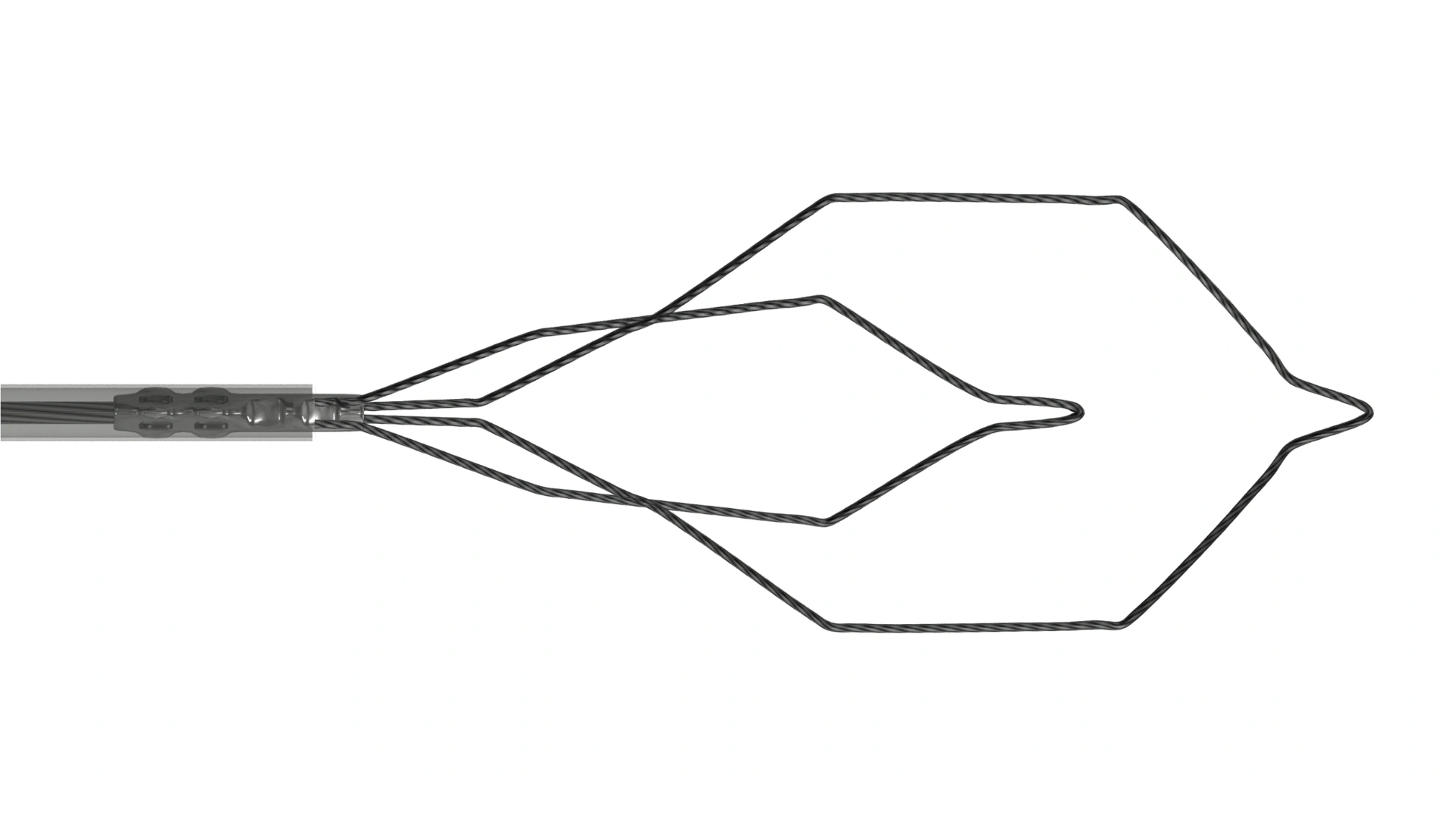

Dual-size snare configuration provides enhanced procedural flexibility, allowing seamless transition between a 10mm and 20mm loop with the KSN22FYC-20.
Rotatable loop technology enables precise loop orientation during the procedure by simply rotating the locking controller on the handle.
(KSN22FHC series without adjustable loop)
| Code | UDI-DI | Qty. | Outer Sheath Diameter (mm) |
Outer Sheath Length (mm) |
Loop Diameter (mm) |
Loop Wire O.D. (mm) |
|---|---|---|---|---|---|---|
| KSN22FHC-10 | 8809744976204 | 1 ea | 2.3 | 2200 | 10 | 0.3 |
| 8809744976242 | 10 ea | |||||
| KSN22FHC-15 | 8809744976211 | 1 ea | 2.3 | 2200 | 15 | 0.3 |
| 8809744976259 | 10 ea | |||||
| KSN22FHC-20 | 8809744976228 | 1 ea | 2.3 | 2200 | 20 | 0.3 |
| 8809744976266 | 10 ea | |||||
| KSN22FYC-20 | 8809744976235 | 1 ea | 2.3 | 2200 | 20 | 0.3 |
| 8809744976273 | 10 ea |
