VIVA Combo RF Generator System

Enabling minimally invasive approach with reliable performance

VIVA Combo RF Generator System

brochure
ifu

Patient-Centric Innovation

For over 20 years, STARmed RFA has pioneered new capabilities in minimally invasive procedures, transforming the field of alternative treatment.

The VIVA combo RF Generator enables an advanced radiofrequency ablation system, ideal for percutaneous ultrasound-guided and endoscopic ultrasound-guided radiofrequency procedures for a variety of organ indications. It operates at a wide power range from 5 – 200 Watts, suitable for smaller tumors in the thyroid or parathyroid as well as biliary, pancreatic, liver, lung, kidney and bone tumors of varying sizes and compositions.

Back to Product list

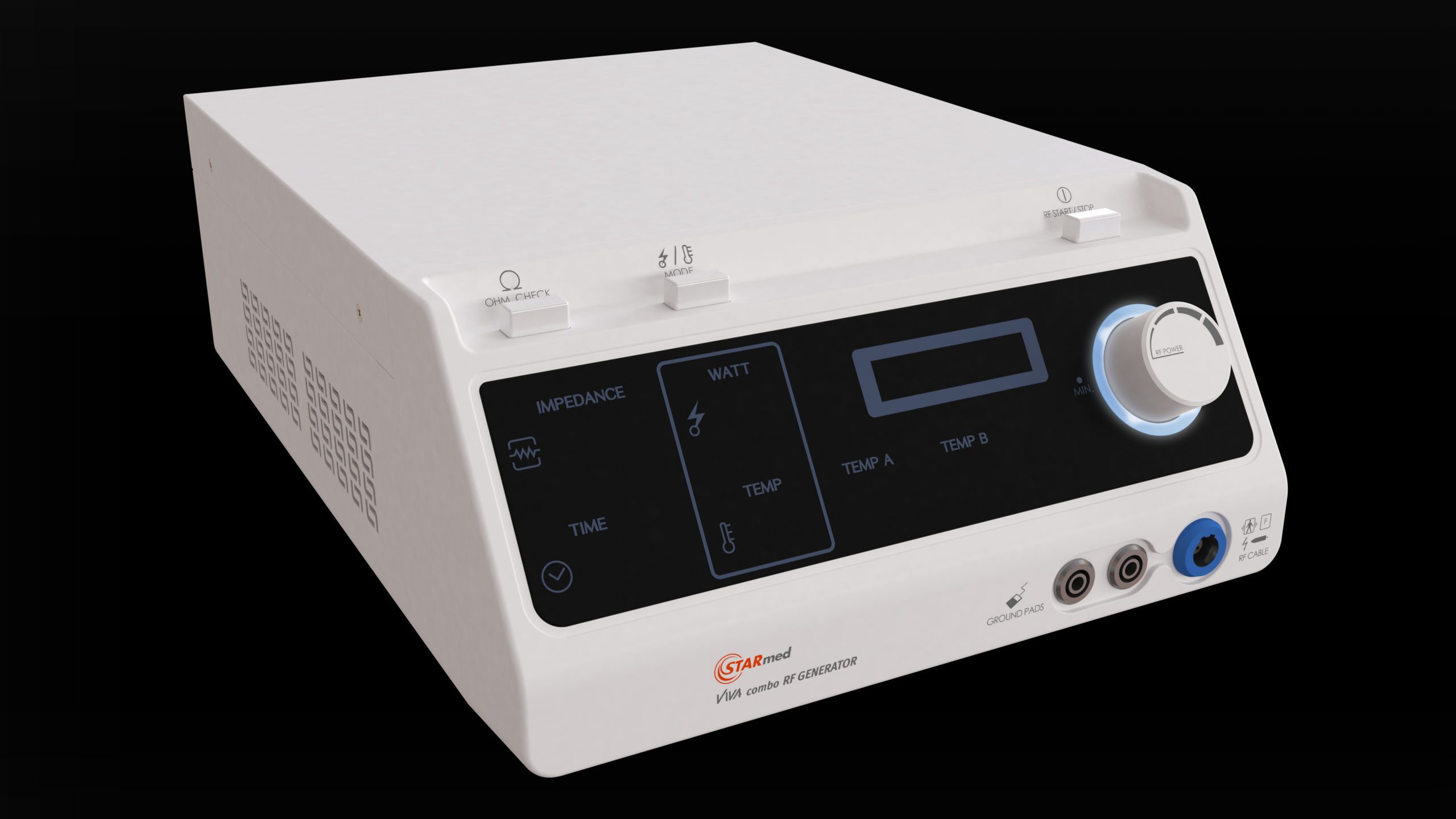

Intuitive User Interface

Easy-to-read front panel to allow real-time monitoring of the procedure progress. Simple-to-use power dial and push buttons to minimize user operational hurdles.

Continuance Mode

The Continuance Mode generates radiofrequency power continously throughout the procedure at the wattage datermined by the EURSA™ needle.

Intuitive impedance based monitoring automatically adjust the amount of energy applied to the targeted lesion according to the real time impedance feedback. This ensures the proper amount of radiofrequency energey is applied to the lesion achieve a safe and proper ablation.

Temperature Mode

The Temperature mode controls the temperature, wattage, and duration before the procedure. During the procedure, the temperature and wattage will be monitored and applied for the pre-set duration; controlling the applica­tion of energy to prevent tissue carbonization and excessive thermal damage. Sudden changes of temperature and impedance automatically shut down the energy for a precise ablation and patient safety.

Impedance Monitoring System

Continuous, real-time feedback on the impedance of the soft tissue to guide your ablation, allowing consistent and predictable ablation zones.

Audible alert tones and automatic shutoff of power output to prevent over ablation and undesired neighboring tissue damage, ensuring a safe procedure process.

VIVA Pump

The VIVA pump features an internal cooling system that circulates saline through the electrode to lower the temperature around the active tip of the electrode.

Specification
Order number VCS10
RF Power 0-200 Watt at 50Ω load
Operating Frenquency 480 kHz
Temperature Monitor 5°C-95°C
Impedance Monitor 10-800Ω

Disclosures & Important Safety Information

Patients should talk to their doctor to decide if any TaeWoong Medical USA procedure is right for them. Patients and doctors should review all available information on non-surgical and surgical options and associated risks in order to make an informed decision.

Serious complications may occur in any surgery, including death. Serious risks include, but are not limited to, injury to tissues and organs and conversion to other surgical techniques which could result in a longer operative time and/or increased complications. For Important Safety Information, including surgical risks, indications, and considerations and contraindications for use.

Individuals’ outcomes may depend on a number of factors, including but not limited to patient characteristics, disease characteristics and/or surgeon experience.
